Semi-Automatic Cement Feeding Machine Pump

Semi-Automatic Cement Feeding Machine Pump

110000.00 - 150000.00 INR/Unit

Product Details:

  • Product Type Machine
  • General Use Industrial
  • Type Cement Feeding Machine
  • Computerized No
  • Automatic No
  • Automatic Grade Semi Automatic
  • PLC Control Yes
  • Click to view more
X

Semi-Automatic Cement Feeding Machine Pump Price And Quantity

  • 1 Unit
  • 110000.00 - 150000.00 INR/Unit

Semi-Automatic Cement Feeding Machine Pump Product Specifications

  • Cement Feeding Machine
  • Hydraulic Pressure
  • No
  • Machine
  • Semi Automatic
  • 240-480 Volt (v)
  • 1 year
  • Industrial
  • High Quality Environment Friendly High Efficiency
  • Electric
  • Yes
  • No

Semi-Automatic Cement Feeding Machine Pump Trade Information

  • Cash Advance (CA)
  • 20 Unit Per Month
  • 7 Days
  • Wooden boxes
  • Australia North America South America Eastern Europe Western Europe Middle East Africa Central America Asia
  • All India

Product Description

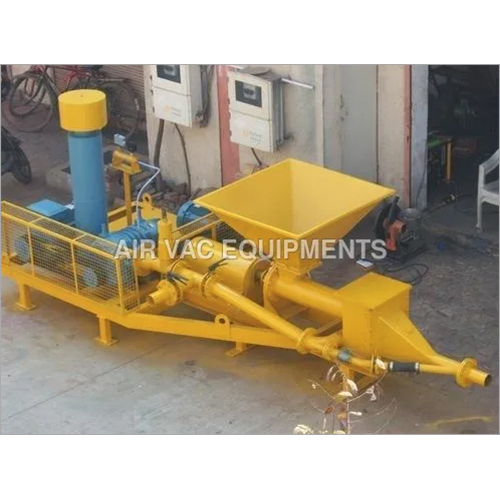

Semi-Automatic Cement Feeding Machine is mainly used to convey dry, free-flowing, pulverized materials from grinding mills and transfer dust from collectors. These feeding machines are precisely engineered by using quality steel and iron under the guidance of our expert professionals by using latest technologies keeping in mind the set industrial norms. Further, this feeding machine is stringently analyzed by our quality analyzer before delivering to our valued customer end. Our provided Semi-Automatic Cement Feeding Machine is known for their robust construction, minimum maintenance and superior finish.

Applications

The Semi-Automatic Cement Feeding Machine are heavy duty, screw type pneumatic pumps. These pumps systems are most commonly used to convey dry, free-flowing, pulverized materials from grinding mills, transfer materials from silo to silo, transfer dust from collectors, and load and unloadrailcars, a pipeline can be run and to any number of delivery points.

Operation

The materials to be conveyed enter the hopper by gravity or dumped by any means. The material is compacted as it is advanced. Its density is further increased in the space between the terminal flight of the screw and the face of the non-return valve to form a seal against the transport line pressure, thus preventing blow back. The material then enters the discharge body, is fluidized by compressed air, and is conveyed into the transport line.

Technical Specifications

  • Model AVE-I, AVE-II
  • Output Capacity 12-15 Ton/ HR 22-25 Ton/ HR
  • Feed Hopper Capacity 500 Kg 700 Kg
  • Screw Tough end
  • Screw Motor 22.5 KW/ 30 HP 22.5 KW/ 30 HP
  • Twin Lobe Air Blower DGR-191, DGR-122
  • Blower Motor 30 Kw/ 40 HP 37.5 KW/ 50 HP
  • Structure with wheel/ Anti vibration Pad with wheel/ Anti Vibration Pad
  • Power Supply 415 V AC + 10%, 3 Phase 50 HZ + 5%



Following Accessories Included

  • Suction Silencer Non Return Valve
  • Discharge Silencer V-Belt Set
  • Spring Loaded safety valve V- Belt Guard
  • Suction Filter Driven Pulley
